Product Description

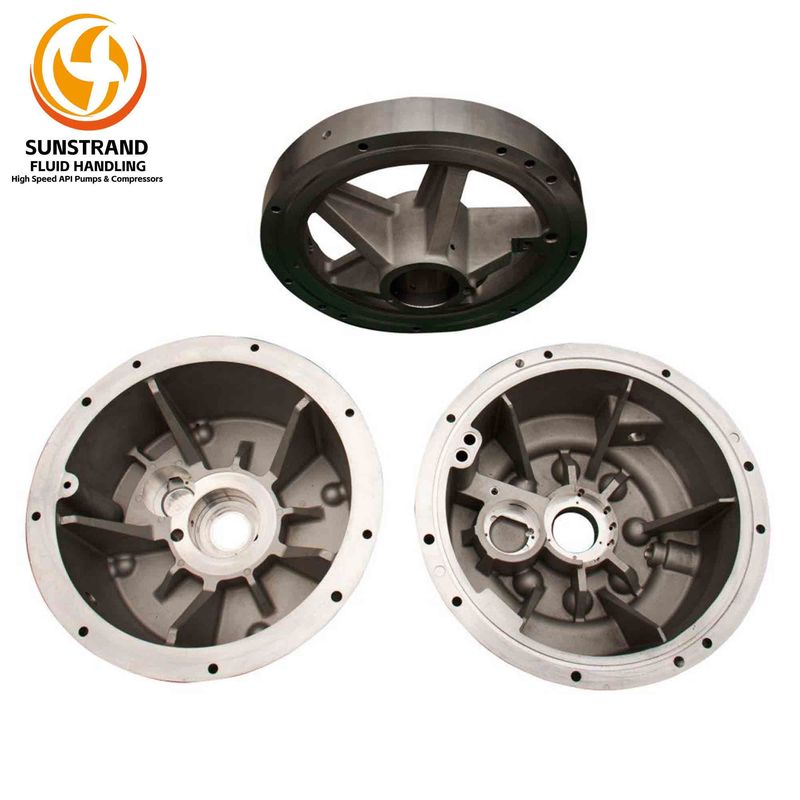

CNC-machined from certified cast iron or cast steel to replicate the original equipment bearing bore centers, dowel pin locations, and mounting face geometries, this Sundyne LMV Series Spare Parts Gear Case Housing Replacement provides the precision structural foundation essential for proper gear mesh alignment and bearing preload in Sundyne integrally geared centrifugal pump applications.
Each gear housing undergoes comprehensive dimensional verification by CMM inspection against our OEM reference measurement database, with positive material identification (PMI) confirming casting material specifications and magnetic particle inspection ensuring structural integrity at all load-bearing sections. With over 200 gear housing assemblies delivered since 2014, our replacement program provides documented, traceable components that maintain the precise alignment tolerances required for reliable high-speed gearbox operation in continuous process service.
| Parameter | Specification |
|---|---|
| Product Type | Gear Housing |
| Compatible Pump Series | Sundyne LMV Series |
| Material | Cast Iron / Cast Steel (Per OEM) |
| Manufacturing Method | CNC Machining with CMM Verification |
| Inspection | CMM Dimensional, MPI, PMI |
| Quality Certification | EN 10204 Type 3.1, Dimensional Report |
| Key Tolerances | Bearing Bores, Dowel Locations, Face Geometry |
| Packaging | Export-Grade Protective Case |
- Precision Bearing Bore Alignment: All bearing bore centers, dowel pin locations, and mounting face geometries are CNC-machined and CMM-verified against OEM reference specifications, ensuring proper gear mesh alignment essential for reliable high-speed gearbox operation.
- Material Verification: Positive material identification (PMI) confirms casting material grade against OEM specifications, and magnetic particle inspection verifies structural integrity at all load-bearing sections.
- Documented Quality Assurance: Complete documentation package including CMM dimensional reports, PMI verification, MPI reports, and material certification supports plant mechanical integrity program documentation.
A: Each gear housing is CNC-machined with all bearing bore centers and dowel locations CMM-verified against our OEM reference database. PMI confirms material grade, and MPI verifies structural integrity. Complete dimensional and inspection documentation is provided.
A: Provide your pump model number (LMV-311, LMV-322, or LMV-341) during inquiry. Our engineers will verify the gear housing dimensions against our model-specific OEM reference data and confirm compatibility before order acceptance.
