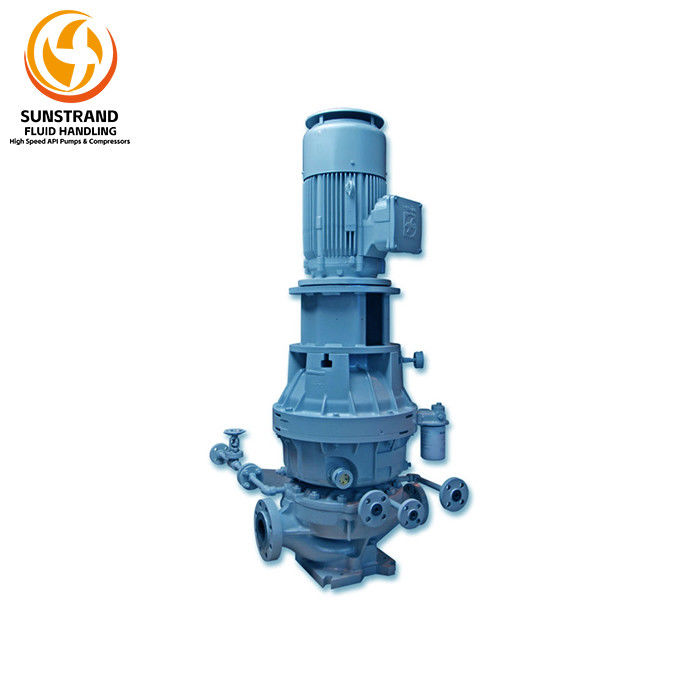

LMC Vertical Inline Integrally Geared Compressor Process Gas Compressor
LMC Vertical Inline Integrally Geared Compressor Process Gas Compressor
LMC Vertical Inline Integrally Geared Compressor Process Gas Compressor
Brand Name
Sunstrand
PRODUCT MODEL
LMC
certificate
IOS9001/IOS9002/CUTR
country of origin
China
MOQ
1
unit price
Negotiation
payment method
T/T
Supply Capacity
10set/month
Product Summary
LMC Vertical Inline Integrally Geared Compressor Process Gas Compressor Product Overview Proven to be reliable, safe, compact and efficient, Sundyne LMC line of vertical integrally geared compressors provide a number of operational benefits: Single stage, vertical in-line overhung integrally geared ...
Product Details
Highlight:
Vertical Integrally Geared Compressor
,LMC Integral Gear Compressor
,LMC Process Gas Compressor
Max Flow:
4150AM³/H
Max Head:
4420 M
Mounting:
Vertical
Max Motor Power:
410KW
Operating Temperature:
-130~+260°C
Max RPM:
Up To 33600RPM
Max Operating Pressure:
160 Bar
Gearbox Lube System:
Pressurized
Product Description
LMC Vertical Inline Integrally Geared Compressor Process Gas Compressor
Product Overview
Proven to be reliable, safe, compact and efficient, Sundyne LMC line of vertical integrally geared compressors provide a number of operational benefits:
- Single stage, vertical in-line overhung integrally geared compressor
- Maximized up time
- Saves space - 25% the size of competing reciprocating, barrel, rotary screw compressors
- Continuous operations for 5 years with no overhaul (optional)
- Optimized compressor engineering to meet the BEP - Best Efficiency Point to save energy through efficiency
Key Features
- Product Name: LMC Vertical Inline Integrally Geared Process Gas Compressor
- Speed: Up To 33600 RPM
- Flow: Up To 4150 AM³/H
- Motor Power: Up To 410 KW
- Pressure Range: Up To 160 Bar
Materials
- Casing: Carbon Steel, Stainless Steel, Alloy Steel, other metallurgy on request
- Impeller: Stainless Steel, Titanium, Alloy Steel, Aluminum, other metallurgy on request
- Shafts: Carbon Steel, Stainless Steel, Alloy Steel
- Seals: Stainless Steel, Alloy Steel, non-metallic materials
- Gearbox housings: Aluminum
- O-rings: As Required
- Special metallurgy available to comply with NACE standards and specific gas & operating conditions
Technical Parameters
| Parameter | Value |
|---|---|
| Max. Flow (am³/hr) | 4150 |
| Max. Working Pressure | 160 bar |
| Max. Motor Power (kW) | 410 |
| Temperature Range (°C) | -130 ~ +340 |
| Speed Range (rpm) | 33600 |
| Gearbox Type | Single Stage |
| Standards | API 610 |
| API Plans | 11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J |
Applications
- Gas treatment, purification, De Oxo, Dehydration
- Overhead Gas Compression, Flash Gas Compression
- Waste Gas, Acid Gas, Wet / Dry CO2, H2S
- Feed Gas and Recycle Gas Compressor, Hydrocarbons, Hydrogen
- Ammonia, Chlorine, Ethylene, Propylene, Refrigerant Gases

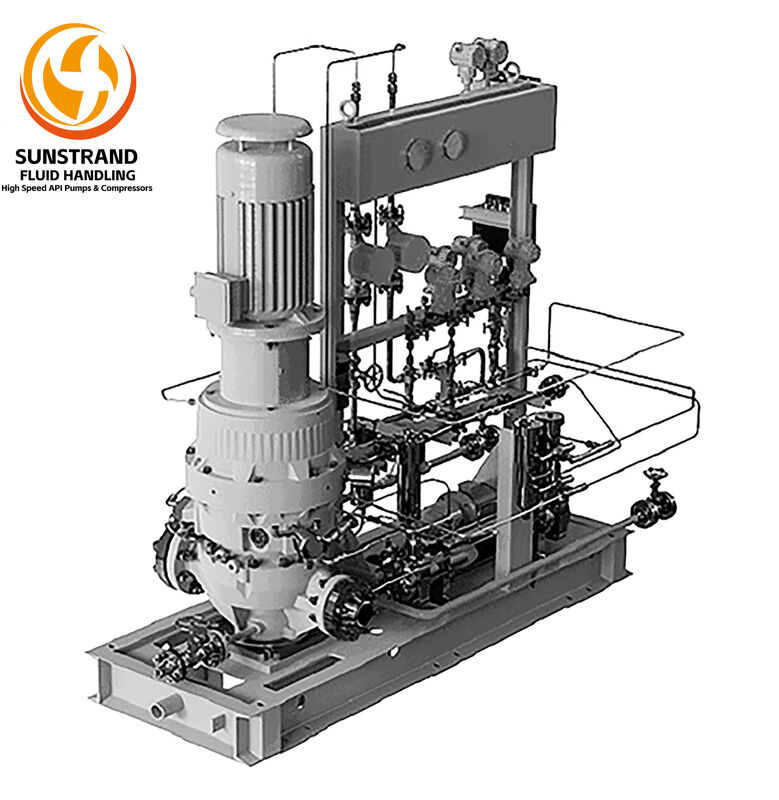

Performance and Cutaway
Support and Services
LMC Vertical Inline Integrally Geared Process Gas Compressor is a reliable and efficient solution for a variety of industrial applications. Our product technical support and services include:
- Expert consultation and technical assistance to help you select the right pump for your application
- Installation and start-up services to ensure proper operation and performance
- Regular maintenance and repair services to keep your pump running smoothly and extend its lifespan
- Training and education services to help you and your team understand proper operation and maintenance procedures
- 24/7 emergency support to address any unexpected issues or downtime
Packing and Shipping
Product Packaging:
- One LMC Vertical Inline Integrally Geared Process Gas Compressor
- User manual and installation instructions
- Safety instructions and warnings
Shipping Information:
- Ships within 6 months
- Shipping weight: 75 kgs
- Shipping dimensions: 120*80*100 cm (dependent on each pump)
- Shipping carrier: UPS, FedEx, or Cargo
- Shipping options: Standard or expedited
Frequently Asked Questions
What is the maximum flow rate of the LMC Vertical Inline Integrally Geared Process Gas Compressor?
The LMC Vertical Inline Integrally Geared Process Gas Compressor has a maximum flow rate of 4150 AM³/H.
What is the maximum speed of the LMC Vertical Inline Integrally Geared Process Gas Compressor?
The LMC Vertical Inline Integrally Geared Process Gas Compressor has a maximum speed of 33600 RPM.
What is the maximum operating temperature of LMC Vertical Inline Integrally Geared Process Gas Compressor?
The LMC Vertical Inline Integrally Geared Process Gas Compressor has a maximum operating temperature of -130 ~ +260°C.
What materials are used in the construction of the LMC Vertical Inline Integrally Geared Process Gas Compressor?
The casing and impeller of the LMC Vertical Inline Integrally Geared Process Gas Compressor are made of aluminium alloy and 316 stainless steel.
What is the Max Motor Power supply requirement for the LMC Vertical Inline Integrally Geared Process Gas Compressor?
It requires a 410 kW power supply.
