| Brand Name: | Sunstrand |
| Model Number: | LMV311 |
| MOQ: | 1 |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Payment Terms: | T/T |

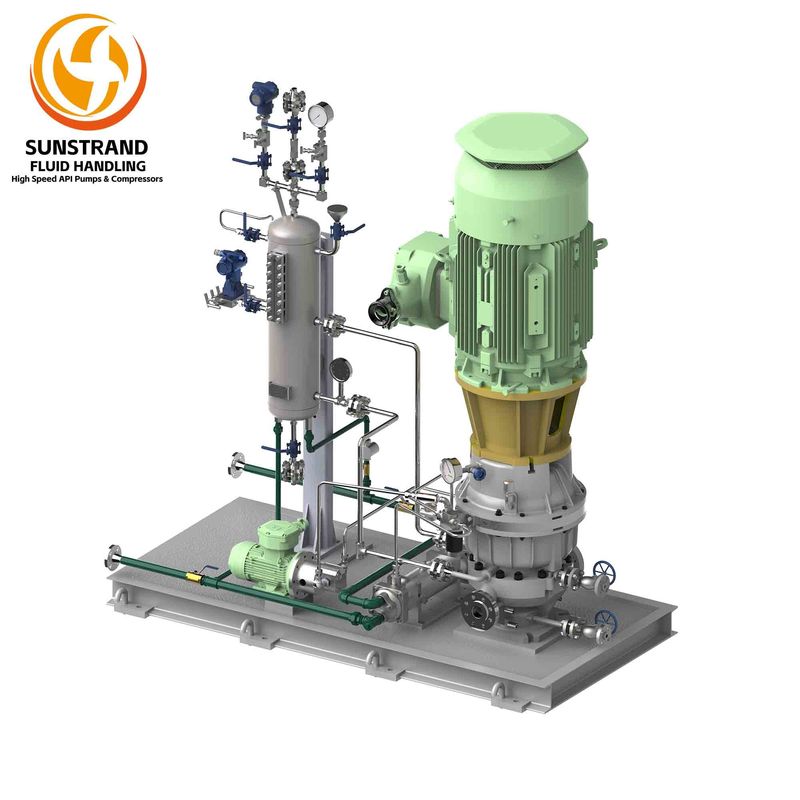

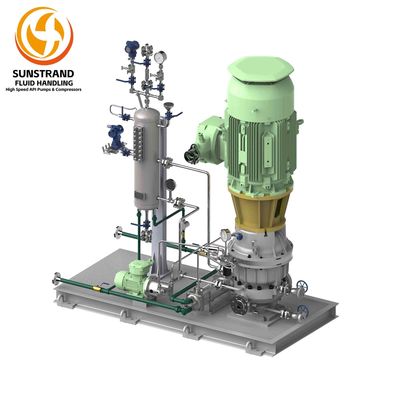

LMV311 High-Speed Vertical Centrifugal Pump The Ultimate Solution for High-Speed Liquid Transfer Demands
LMV311 High-Speed Centrifugal Pump are single-stage, single-suction, cantilever, vertical high-speed pumps, mainly composed of motor, speed increaser, pump body, lubrication system and base. According to different working conditions and configuration requirements, the speed increment box is divided into primary speed increment and secondary speed increment. The import and export flanges of this series of high-speed pumps are symmetrically arranged on the same horizontal centerline, with compact and beautiful appearance and small footprint.
High-precision, highly reliable growth box drive system
Plain bearings with high load and stability
High-efficiency, high-performance hydraulic component design
Flexible and versatile sealing styles
High Speed Centrifugal Pumps, High Speed Centrifugal Compressors, High Speed Centrifugal Compressors
| Technical Parameters | Values |
|---|---|
| Max. Flow (m3/h) | 150 |
| Max. Head (m) | 1920 |
| Max. Suction Pressure(MPa) | 6.8 |
| Max. Working Pressure (MPa) | 20 |
| Max. Motor Power(kW) | 132 |
| Temperature Range (°C) | -130~+340 |
| Speed Range (rpm) | 4950-23700 |
| Gearbox type | Two Stages |

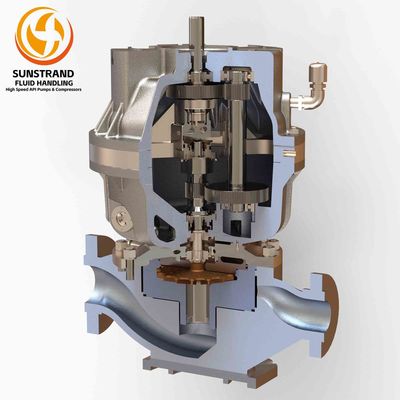

| Performance | Section View |
| Standards | API 610 |
| API Plans | 11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J |
| Application |
Feed pumps,Booster pumps,Bottoms pumps,Wash water pumps, Wash water pumps,Condensate pumps |
The vertical configuration of the integrally geared line of Sundyne pumps is specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.
This pump is ideal for applications that require a high flow rate, high pressure, and high head. Its high-speed operation makes it suitable for use in high-speed centrifugal compressors and pumps, and its durable construction ensures that it can handle a variety of fluids and environments.
The LMV311 High-Speed Vertical Centrifugal Pump is a reliable and efficient solution for a variety of industrial applications. Our product technical support and services include:
At LMV311, we are committed to providing top-quality products and exceptional customer service. Contact us today to learn more about our technical support and services.
Product Packaging:
Shipping:
Q1:What is the maximum flow rate of the LMV311High-Speed Vertical Centrifugal Pump
A1: The LMV311 High-Speed Vertical Centrifugal Pump has a maximum flow rate of 150M³/H.
Q2: What is the maximum head of the LMV311 High-Speed Vertical Centrifugal Pump?
A2: The LMV311 High-Speed Vertical Centrifugal Pump has a maximum head of 1920 m.
Q3: What is the maximum operating temperature of the LMV311 High-Speed Vertical Centrifugal Pump?
A3: The LMV311 High-Speed Vertical Centrifugal Pump has a maximum operating temperature of -130~+340°C.
Q4: What materials are used in the construction of the LMV311 High-Speed Vertical Centrifugal Pump?
A4: The casing and impeller of the LMV311 High-Speed Vertical Centrifugal Pump are made of aluminium alloy
and 316 stainless steel.
Q5: What is the Max Motor Power supply requirement for the LMV311 High-Speed Vertical Centrifugal Pump?
A5: The LMV311 High-Speed Vertical Centrifugal Pump requires a 132kW.
|
|
