Industrial Integrally Geared API Pumps LMV341 High Speed Vertical Centrifugal Pump

Name: Industrial Integrally Geared API Pumps LMV341 High Speed Vertical Centrifugal Pump
Brand: Sunstrand Fluid Handling Co., Ltd.(China)
SKU: LMV341
Availability: InStock

Brand Name:	Sunstrand
Model Number:	LMV341
MOQ:	1
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10set/month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

IOS9001/IOS9002/CUTR

Product Name:

API 610 OH6 Pumps LMV341Pump

Operating Temperature:

-130~+340°C

Feature:

Industrial Integrally Geared API Pumps

Flow Rate:

Up To 400 Gpm

Maximum Motor Power:

400 HP

Temperature Range:

-200 To 650 F

Packaging Details:

Wooden Case

Supply Ability:

10set/month

Highlight:

Industrial Integrally Geared API Pumps

Integrally Geared API Pumps LMV341

API Vertical Centrifugal Pump

Product Description

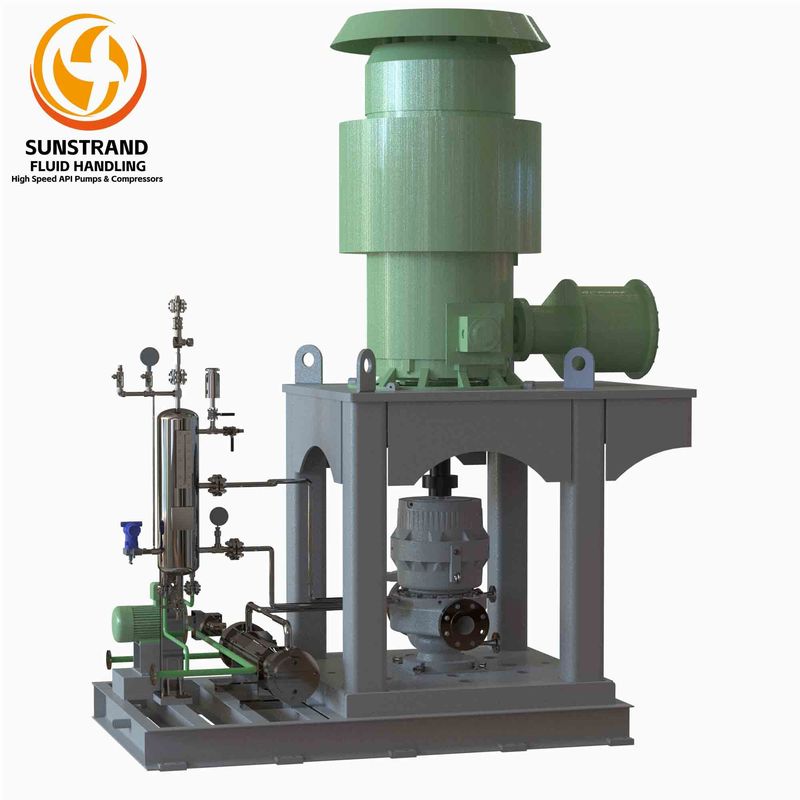

Industrial Integrally Geared API Pumps LMV341 High Speed Vertical Centrifugal Pump

Our API 610 OH6 series is a high-speed, integrally geared vertical centrifugal pump designed for precision performance in refinery and petrochemical environments. Engineered as a technical match for the LMV 341 series, this pump excels in high-head, low-flow applications where traditional multi-stage pumps are inefficient.

With a focus on operational reliability and compliance, our OH6 pumps ensure seamless integration into existing systems while providing advanced hydraulic coverage and robust gearbox technology.

Technical Specifications

US Standard (60 Hz)

Parameter	Specification
Differential Head	Up to 6,300 ft
Flow Rate	Up to 400 gpm
Maximum Motor Power	400 HP
Temperature Range	-200 to 650 °F
Maximum Case Working Pressure	1,260 psi
Maximum Suction Pressure	2,160 psi
Maximum Viscosity	750 cp
Solids Range	0.015 inch (400 microns)
Suction and Discharge Size	3 x 2 inches
Available Flanges	600# or 900# ANSI RF and RTJ

Metric Standard (50 Hz)

Parameter	Specification
Differential Head	Up to 1,344 m
Flow Rate	Up to 74 m³/hr
Maximum Motor Power	315 kW
Temperature Range	-130 to 340 °C
Maximum Case Working Pressure	151.9 kg/cm²
Maximum Suction Pressure	71 kg/cm²
Maximum Viscosity	750 cp
Solids Range	0.381 mm (400 microns)

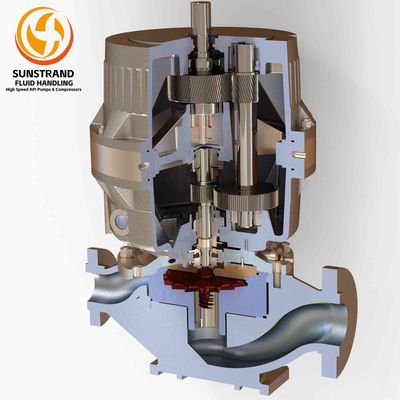

The Performance and Cutaway

Industrial Integrally Geared API Pumps LMV341 High Speed Vertical Centrifugal Pump 0

Materials of Construction and Build Codes

We offer a range of metallurgy options to meet API 610 material classes (S-5, A-7, S-8), ensuring compatibility with diverse process fluids.

Pump Case: Carbon Steel or 316 Stainless Steel
Impeller and Inducer: 316 Stainless Steel
Diffuser Insert: Carbon Steel or 316 Stainless Steel
Shaft: 4140 Steel or 15-5PH for low-temperature service
Seal Faces: Carbon, Silicon Carbide, or Tungsten Carbide
API Flush Plans: Supports Plans 11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62

Key Performance Advantages

API 610 OH6 Compliance

Fully compliant with the latest API 610 standards for integrally geared pumps, ensuring safety and reliability in hazardous industrial zones.

Optimized NPSH with Inducer Technology

Available inducers significantly lower the Net Positive Suction Head required (NPSHr), protecting the pump from cavitation during volatile fluid handling.

Compact Vertical Design

The vertical inline configuration saves valuable floor space and simplifies piping layouts compared to horizontal multi-stage alternatives.

Drop-in Replacement Capability

Designed with matching 3 x 2 inch dimensions and flange ratings, this series serves as a direct technical alternative to LMV 341 installations, minimizing downtime during upgrades.

Technical Questions and Answers

Is this pump a direct alternative for the Sundyne LMV 341?

Yes. Our OH6 series is engineered to match the hydraulic performance and mounting dimensions of the LMV 341, allowing for a streamlined transition without major piping modifications.

How does the pump handle cryogenic or high-temperature fluids?

By utilizing different build codes, such as Build O for temperatures down to -240 °F, we employ specialized materials like 15-5PH shafts and 316 SS cases to ensure structural integrity across a wide thermal range.

What sealing options are available for hazardous hydrocarbons?

We provide Single, Double, and Tandem seal configurations. These are paired with various API Flush Plans (such as Plan 52 or 53) to ensure secondary containment and seal cooling for dangerous fluids.

Can the pump performance be adjusted if process conditions change?

Yes. The modular design features replaceable diffuser inserts and impellers, allowing the pump to be re-rated for new flow or head requirements without replacing the entire unit.
