Heavy Duty Hydrocarbon Processing High Speed Centrifugal Pumps Sundyne LMV 322 Replacement

Name: Heavy Duty Hydrocarbon Processing High Speed Centrifugal Pumps Sundyne LMV 322 Replacement
Brand: Sunstrand Fluid Handling Co., Ltd.(China)
SKU: LMV 322
Availability: InStock

Brand Name:	Sunstrand
Model Number:	LMV 322
MOQ:	1
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10set/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

IOS9001/IOS9002/CUTR

Product Name:

Sundyne LMV 322 Replacement

Maximum Process Flow:

Up To 85 M³/h (375 GPM)

Feature:

Sundyne Pump Alternative

Operating Temperature:

-130~+340°C

Max Flow:

52M³/H ( Process‑customized )

RPM:

Up To 4900-14179

Packaging Details:

Wooden Case

Supply Ability:

10set/month

Highlight:

Heavy Duty High Speed Centrifugal Pumps

Hydrocarbon Processing High Speed Centrifugal Pumps

Hydrocarbon Processing centrifugal pump vertical type

Product Description

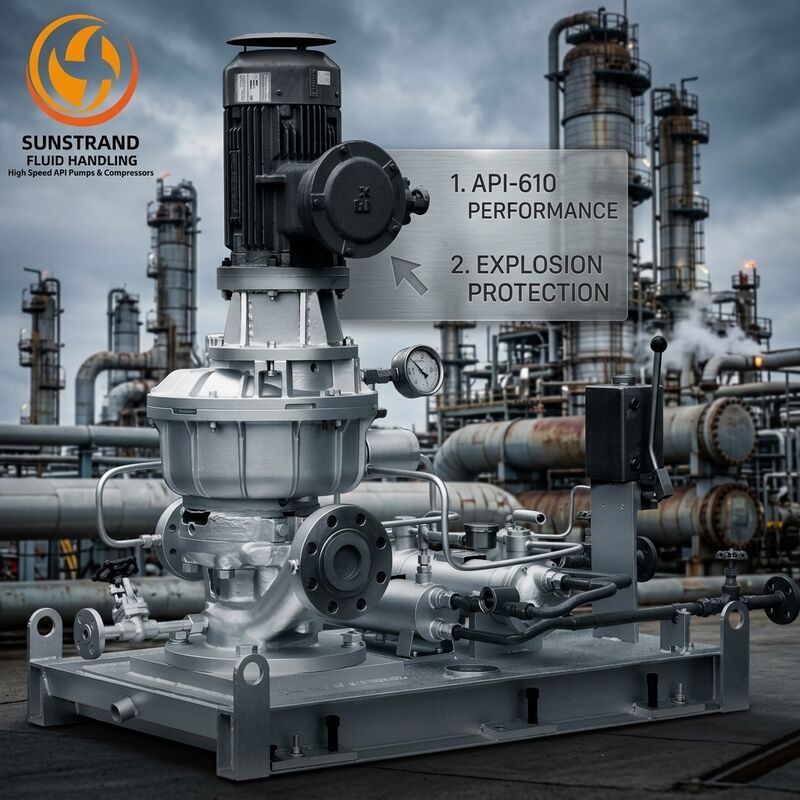

Sundyne LMV 322 Replacement High Speed Centrifugal Pumps

In heavy duty hydrocarbon processing, chemical refining, and upstream gas processing facilities, managing low-flow, high-pressure fluid dynamics requires robust, specialized machinery. When existing critical units approach the end of their lifecycle, sourcing a dependable Sundyne LMV 322 replacement becomes a focal point for reliability engineers and plant managers.

Engineered in absolute conformity with the stringent API 610 (OH6 configuration) standard, these vertical high speed centrifugal pumps deliver an exact, drop-in alternative that integrates flawlessly into established process loops without requiring disruptive structural modifications.

Unscheduled maintenance in continuous midstream or downstream process lines leads to severe operational deficits. Addressing this vulnerability, our engineered Sundyne alternatives incorporate localized advancements in internal speed-increasing gearbox mechanical efficiency, precision-machined impeller dynamics, and computational fluid dynamics (CFD) optimization. This ensures that every single-stage unit provides exceptional total dynamic head (TDH) while operating with a minimal Net Positive Suction Head required (NPSHr).

Technical Specifications

To support precise evaluation by EPC contractors, technical design institutes, and rotating equipment specialists, the cross-reference data below illustrates the performance capacities of our Sundyne LMV 322 equivalent pumps, showcasing full alignment with international process standards:

Engineering Parameter	Specifications & Performance Thresholds
Compliance Category	Fully compliant with API 610 (Latest Edition, OH6 Class)
Direct Field Substitution	Sundyne LMV-322 / LMV-322 vertical inline high speed pump
Maximum Process Flow	Up to 85 m³/h (375 GPM)
Maximum Total Dynamic Head	Up to 914 m (3,000 ft)
Maximum Allowable Working Pressure	Up to 10.0 MPa (1440 psi) standard casing rating
Fluid Temperature Tolerances	Cryogenic -130°C up to elevated +260°C (-200°F to +500°F)
Internal Rated Gearing Speed	Precision-ground internal step-up gearing up to 9,000 RPM
Pressure Boundary Materials	API 610 Material Classes: S-5, S-6, C-6, A-8 (316SS, Duplex, Hastelloy)
Shaft Encapsulation System	Fully compliant with API 682 single or dual cartridge seals

Technical Advantages

100% Dimensional & Hydraulic Alignment: All suction/discharge centerline dimensions, foundation bolt positioning, and flange pressure ratings are identical to legacy setups, allowing for zero-piping-stress field changeouts.
Rapid Lead Times & Spare Parts Continuity: Free from prolonged international supply chain backlogs, our Sundyne pump replacement manufacturing protocol compresses delivery times by over 50%. Critical internal parts, high-speed shafts, and pinions are kept in dedicated safety stock.
Uncompromising Technical Verification: Every pressure-retaining casing undergoes hydrostatic testing at 1.5 times the maximum allowable working pressure. Impellers undergo ISO 1940 G1.0 ultra-precision dynamic balancing, and complete assemblies are verified on certified string-test beds before dispatch.
Enhanced Anti-Cavitation Trim: To eliminate cavitation risks during volatile fluid handling, the inducer geometry has been re-engineered, successfully dropping the Net Positive Suction Head available (NPSHa) constraint for the system.

Performance and Cutaway

Applications

Petroleum & Petrochemical Refining: Hydrotreater feed loops, fluid catalytic cracking (FCC) wash water, light hydrocarbon reflux, and high-pressure chemical injection.
Fine Chemical & Coal Gasification: High-head, low-flow distribution of hazardous chemical media, corrosive acids, solvents, and volatile toxic compounds requiring zero leakage.
Fertilizer Production & Gas Sweetening: Amine wash column reflux, liquid natural gas (LNG) transfer loops, and high-pressure urea condensate spray systems.

Product Packaging

One LMV322 High-Speed Vertical Centrifugal Pump
User manual and installation instructions
Safety instructions and warnings

Shipping Information

Ships within: 6 months

Shipping weight: 75kgs

Shipping dimensions: 120*80*100cm (depend each pump)

Shipping carrier: UPS or FedEx or Cargo

Shipping options: Standard or expedited

Frequently Asked Questions

Q1: Can your high speed centrifugal pumps achieve an identical hydraulic footprint when substituting an active Sundyne LMV 322? How is asset reliability verified?

Yes, with absolute precision. Our machinery replicates the exact performance curves and physical footprint of the original Sundyne LMV 322. For quality verification, our production facility adheres strictly to API 610 and API 682 protocols. Every single replacement pump is delivered with an extensive documentation package, including Material Test Reports (MTRs), Non-Destructive Testing (NDT) logs for casings, dynamic balancing certificates, and witnessed performance test charts to ensure completely safe deployment in hazardous, explosive zones.

Q2: What commercial advantages do these engineered Sundyne replacement high speed pumps offer over direct OEM asset procurement or original spare parts?

Procurement managers frequently encounter extensive OEM price markups and long logistical backlogs that complicate turnaround scheduling. Selecting our premium Sundyne replacement high speed pumps lowers initial equipment costs by 30% to 50% while operating to identical industrial tolerances. Additionally, our agile production framework supports expedited delivery for both turnkey pump units and critical overhaul components, optimizing your total cost of ownership (TCO).

Q3: How interchangeable are the internal rotating elements if we want to utilize them as aftermarket spares for our existing Sundyne fleet?

Strict dimensional interchangeability was a foundational design requirement for this Sundyne replacement pump line. The internal speed-increasing gearing, high-speed bearings, shafts, and cartridge mechanical seals are machined to micro-tolerance specifications. Consequently, you can either install our complete pump assembly as a drop-in replacement for worn assets, or utilize our high-precision rotating components as direct interchangeable aftermarket spares to reduce your warehouse inventory overhead.
